Quick-release and manual release pivot-up davits -
Model 6100 & Model 6000 - carry inflatable boats on
shallow swim platforms

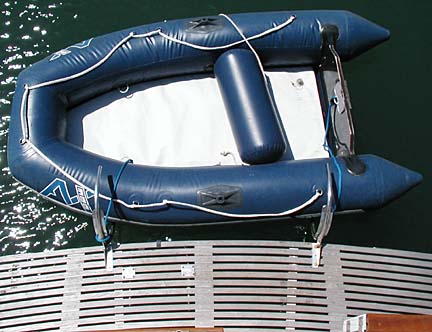

Pivot-up Davit System
(model 6100) with quick release, or the Pivot-up Davit System (model
6000) with manual release, are both designed to carry an inflatable
boat or dinghy on the swim platform of boat as shown in the
pictures.
This davit is the
highest quality, easiest to install, simplest to use davit system on
the market for yachts with shallow-depth swim platforms.
"A davit with no expensive gluing of
parts on your dinghy, no hassles, no worries....just go boating!"
-
Model 6100 quick
release has quick release pull pins to remove davit from bracket.
-
Model 6000 manual
release has nuts and bolts to remove davit from bracket.
-
No gluing of fittings
on inflatable.
-
Stainless steel
retainers "cradle" inflatables securely in place.
-
Easy installation and
use.
-
Easily removed in
seconds using the quick release system.
-
Constructed of marine
grade stainless steel and electro-polished for extra protection.
-
Stainless steel
mounting hardware included.
-
Dinghy may be pulled
tightly against transom of larger vessel and lifting lines used to
secure dinghy to cleats of vessel.
-
Comes with added
backing plates at no extra charge.
-
Recommend "holding
lines" to secure boat to larger vessel as shown in drawing.
-
Maximum weight 300
lb.
-
Support pads, 3" wide
by 12" long are welded to bottom section of retainers for extra
support for inflatable.
-
Retainers will
accommodate inflatable tubes up to 17" diameter.
-
Shipping weight 8 lb.
3 oz.
-
Works great with the
Pivoting Motor Mount Bracket. See below.
-

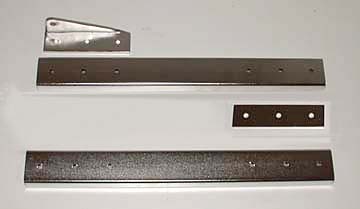

Optional
davit mount extensions also available. See below.
-
Or consider our
Complete Davit System - pivoting davit, pivoting motor mount
and stand-off bars.
-
Optional
stand-off bars are recommended to keep dinghy in upright
position on swim step, in 18", 24", 30", 36" length.
